Professional HVAC Ductwork Installation Services in East Brunswick, NJ
Zoned HVAC systems need ductwork laid out so each zone gets the right amount of air. Our team installs ductwork that lets your HVAC system perform as designed. Before installation, we design the HVAC ductwork so airflow and static pressure stay within range. The work is scheduled around your household or business hours. The ductwork is installed from the plenums outward, with hangers holding every section level and secure. We seal the ductwork as we go and add insulation wherever temperature loss could occur. We wrap up by balancing the airflow and checking every connection. You'll find the specific HVAC ductwork installation services we provide below.
Residential HVAC Ductwork Installation in East Brunswick
Single-family homes often end up with ductwork installed by rule of thumb, which leaves some rooms overcooled and others struggling to reach the thermostat setting. Our team measure each room, notes window exposure and ceiling height, and builds a room-by-room airflow plan before any materials arrive. Installers set a sheet metal supply plenum on the air handler, run an extended trunk through the attic, and branch off to each room with properly sized takeoffs. Our air duct installation process includes a manual balancing damper near the trunk on every branch. After startup, the crew measures airflow at each register and sets the dampers to match the design. Each room then holds within a few degrees of the others.
Commercial Ductwork Installation in East Brunswick
Commercial buildings need duct systems sized for occupant loads, equipment heat, and the ventilation rates set by the mechanical code. Our commercial air duct services team works from engineered mechanical drawings and coordinates duct routing with the electrical, plumbing, and fire sprinkler trades before installation starts. Installers hang rectangular galvanized trunks on threaded rod and trapeze supports above the ceiling grid, then connect VAV boxes and ceiling diffusers for each zone. Fire dampers go in at every rated wall and floor penetration. The crew seals all joints to the leakage class on the drawings and works with the test and balance contractor during final commissioning. The building opens with each zone receiving the airflow its occupants need.
New HVAC Ductwork Installation in East Brunswick
Homes that relied on window units, wall heaters, or ductless systems have no duct paths, so adding central air means planning routes through an existing structure. Our air duct installation team surveys the attic, closets, and soffits to find routes that keep duct runs short and hidden. We cut new register openings in each room, frame a return air chase where needed, and install a compact trunk layout sized for the new equipment. Installers build soffits or use closet space to conceal ducts in rooms without attic access above them. The crew patches every drywall cut around the new registers before the job closes. The home gains quiet central air through registers placed for even coverage in each room.
HVAC Ductwork Replacement in East Brunswick
Ductwork past its service life shows crushed flex runs, rusted sheet metal, and brittle insulation that let conditioned air escape into the attic. Our air duct replacement team runs a duct leakage test on the old system first so you see how much air it loses before replacement. The crew removes the old ducts in sections and hauls them away, keeping the air handler in place when it still has years of service left. We install new trunks and branches along improved routes and reuse the existing register openings where their locations work. A second leakage test after installation shows the improvement in numbers. Your AC cools the home faster and carries a lighter load on hot afternoons.
Sheet Metal Duct Fabrication in East Brunswick
Off-the-shelf fittings rarely match the exact size of an air handler, a tight attic bay, or an odd framing gap. Our fabricators measure the equipment and the installation space, then cut and form galvanized sheet metal into custom plenums, transitions, and offsets. Each seam gets a Pittsburgh lock, and each connection gets an S-cleat or drive cleat so the fittings hold tight under pressure. Our air duct repair team ensures larger trunks receive cross-breaking or reinforcement to stop the panels from drumming when the blower starts. Every fitting gets sealed with mastic before the insulation goes on. Custom fittings let air turn corners smoothly, which lowers static pressure and blower noise.
Duct Insulation Installation in East Brunswick
Bare or thinly insulated ducts in hot attics gain heat before cool air reaches your rooms and form condensation on their outer surface. Our home ventilation cleaning team inspects the existing insulation for gaps, compression, and torn vapor barriers. We wrap sheet metal trunks and fittings in foil-faced fiberglass duct wrap rated at R-8 and seal every seam with foil tape so humid air cannot reach the cold metal. Flex runs with damaged jackets get replaced with new R-8 insulated flex duct. Supports get adjusted so straps no longer compress the insulation. Supply air reaches the registers colder, and the ceiling below the ducts stays dry.
Zoned Duct System Installation in East Brunswick
Two-story homes and open floor plans often have rooms that heat or cool at very different rates under a single thermostat. We divides the home into zones based on floor level and sun exposure, then plans a trunk layout that serves each zone separately. Installers fit motorized zone dampers in each zone trunk and wire them to a zone control panel and a thermostat in each area. A static pressure relief setup protects the blower when only one zone calls for air. The crew tests each zone independently after startup. Upstairs and downstairs rooms each hold their own temperature setting.

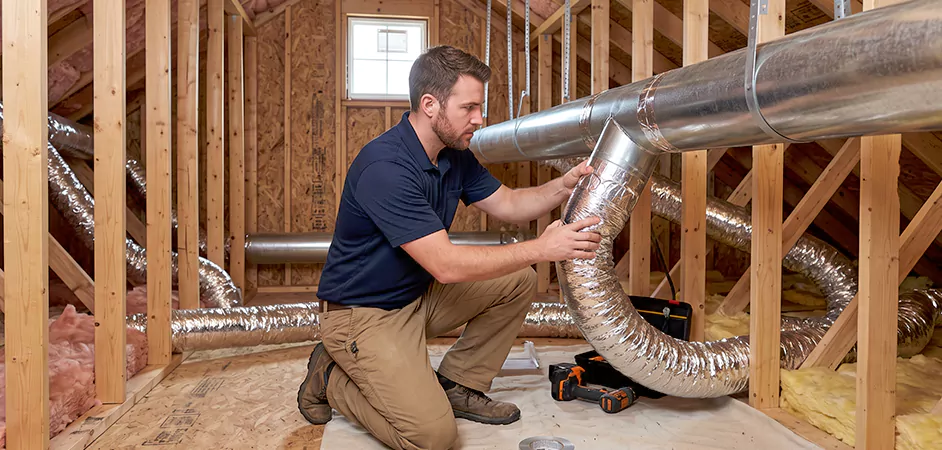

Ductwork Modification in East Brunswick
Room additions, garage conversions, and kitchen remodels change the load on an HVAC system and often leave new spaces without proper supply or return air. We calculate the load for the new space and checks whether the existing trunk and equipment can carry the extra airflow. When capacity allows, installers extend the trunk, add a sized takeoff, and run a new branch to the space. When the system falls short, we recommend a trunk upgrade or a separate system and explain the reason with the load numbers. Every tie-in gets sealed and insulated to match the existing system. The new space stays as comfortable as the rest of the home without starving the original rooms of air.
HVAC Ductwork Installation Near Me in East Brunswick, NJ
Property owners looking for HVAC ductwork installation contractors near me want a local crew that knows area permit rules and building layouts. East Brunswick Air Duct Pro installs duct systems for homes and businesses across East Brunswick and nearby areas including Frost Woods, Lawrence Brook, and Society Hill. Call (862) 640-2399 to schedule a free design visit with our estimator.
About Our City East Brunswick
Our team proudly serves homes and businesses throughout East Brunswick with careful, practical air duct and ventilation cleaning services. From Frost Woods and Lawrence Brook to Society Hill, we work with homeowners, landlords, and property managers looking to manage buildup within supply and return-air pathways. By focusing on duct inspection, dust removal, and cleaning of accessible HVAC vents, we help local customers keep their ventilation systems in better condition and support a more comfortable indoor environment. Our recommendations reflect the property's duct layout, accessibility, and actual cleaning needs.
HVAC Ductwork Installation Cost in East Brunswick, NJ
HVAC ductwork installation price depends on the duct material, the total linear footage, and how many rooms the system serves. Installed sheet metal ductwork generally runs $15 to $35 per linear foot, and insulated flex duct costs less at about $10 to $20 per linear foot. Your quote from East Brunswick Air Duct Pro lists footage, fittings, and labor separately, with pricing that starts.
| Service | What's Included | Typical Cost |
|---|---|---|
| Sheet metal trunk line | Galvanized trunk, hangers, mastic sealing | $15 to $35 per linear foot |
| Insulated flex duct | R-8 flex, collars, straps | $10 to $20 per linear foot |
| Duct board plenum | Fabricated plenum, foil tape sealing | $400 to $900 |
| Zoning dampers | Motorized dampers, thermostat wiring | $1,500 to $3,500 per system |
| Ductwork for an addition | New branches, trunk tap, registers | $1,500 to $4,000 |
| Duct leakage testing | Pressurization test, written report | $150 to $300 |
| Commercial ductwork | Spiral or rectangular duct, fire dampers | Custom quote |
